Forum: Markt [V] 27C322 / 27C160 / 27C800 / 27C400 Adapter Board für TL866 / GQ4x


von Klaus S. (te_klaus)


Angehängte Dateien:

Lesenswert?

Hey Leute,

Ich hab mir selbst diesen Adapter vor 2 Jahren gebaut und nun noch die
Bauteile für 2 Adapter zur Verfügung.

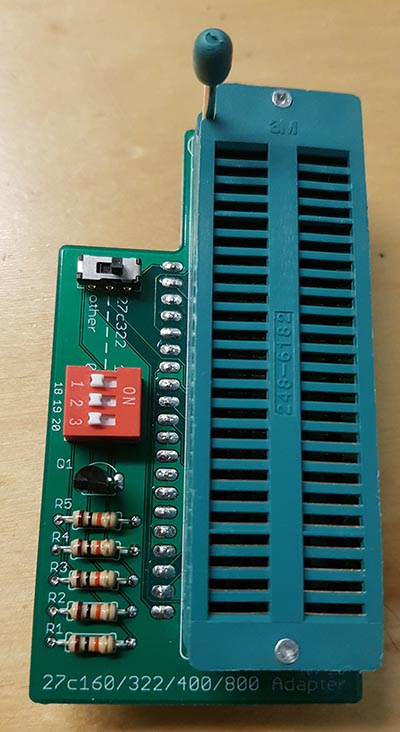

Der Adapter unterstützt die Bauteile 27C322, 27C160, 27C800 & 27C400.



Hier die kurze englische Beschreibung:

Converts the mask- EP- EEP- ROM pinouts of the above parts to the JEDEC
pinout of 27C4096 EPROMs (as supported by TL866 USB programmer, and
possibly other cheap programmers too). The TL866 programmer is supported
through its MiniPro software by selecting '27C4096' device and disabling
'Check ID'. You may also like to reduce VPP Voltage to 12.50V (check
your device data sheet).

Since the TL866 has only a 40-pin programming socket, the extra address

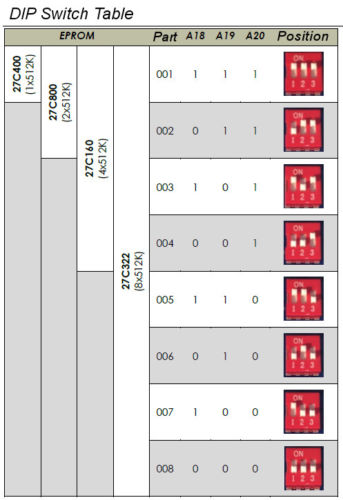

pins on 27C800 & 27C160 are configured manually via dip switch:



    27C400: no need to set dip switch, program all 512kB in one pass.
    27C800: program in 2 512kB passes: A18=0 (bank 1), then A18=1 (bank
2)
    27C160: program in 4 512kB passes: A19/A18=00,01,10,11 (banks
1,2,3,4)
    27C322: program in 8 512kB passes:
A20/A19/A18=000,001,010,011,100,101,110,111 (banks 1,2,3,4,5,6,7,8)


Since 27C322 is a slightly different pin-out to the other devices, there
is a switch which must be used only for 27C322 devices.

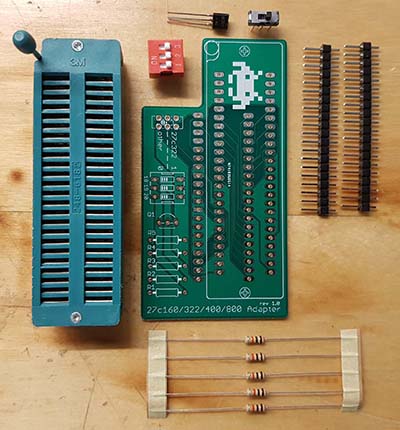

Der Adapter wird auf Ebay & Co für ca. 25USD (ohne Versandkosten)
verkauft.   Ich verkaufe die Einzelteile, zur Selbstlötung, zum
Einkaufspreis: 13EUR
oder Zusammengelötet/inkl. Testung, für sofortigen Einsatz: 17EUR

Versandkosten:
Ich bin aus AT.

Nach DE, daher leider ca. 8EUR.
Innerhalb AT: 3,80EUR

von Torsten K. (Firma: TOKA) (avantasia)


Lesenswert?

Hast eine PN... hoffe ich bin nicht zu spät.

von Torsten K. (Firma: TOKA) (avantasia)


Lesenswert?

Hallo Klaus,

Ich habe eben auf Deine Nachfrage per PN geantwortet.
Schau mal ggf. im SPAM Ordner nach, möglicherweise
landen eMails aus diesem Forum bei Dir im Spam.

Ich möchte gerne einen kompletten Satz.

LG Torsten

von Klaus S. (te_klaus)


Lesenswert?

Da ich keine Nachrichten aus diesem Forum bekomme, meldet euch doch
bitte direkt per E-Mail bei mir, solltet ihr Interesse an so einem
Adapter haben.

E-Mail: te@maskr.me
