Isolating digital and analog grounds in Kinetis K60 Series of NXP

haseeb fayyaz abbasi Gast 19.11.2019 11:25 #6044255

Lesenswert?

•

How will it be ensured that digital and analog grounds are isolated for
K60 series controller when power supplies for analog and digital

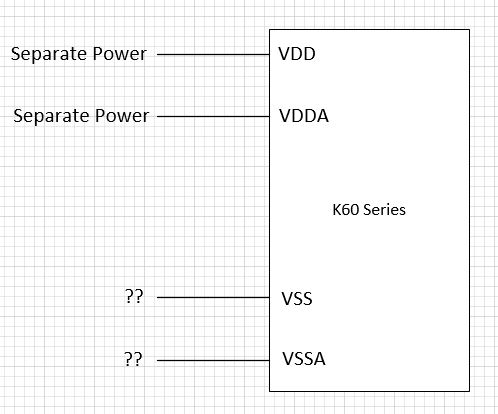

supplies are separate. Diagram is attached for clarity. How to connect
these two grounds with each other? What circuitry will be needed to
ensure these two grounds does not effect each other when they are
connected?

Angehängte Dateien:

Drawing1.vsdx (17,9 KB)


Antwort Zitieren Bearbeiten Thread verschieben Thread sperren Anmeldepflicht aktivieren Anpinnen Thread löschen Thread mit anderem zusammenführen Beitrag melden

Wolfgang R. (mikemcbike) (Firma: www.wolfgangrobel.de) 19.11.2019 11:32 #6044266

Lesenswert?

•

▲
▼

As I know, both Ground lanes are connected via an EMV-Choke to prevent
HF-disturbances. That means, they are DC-coupled.
