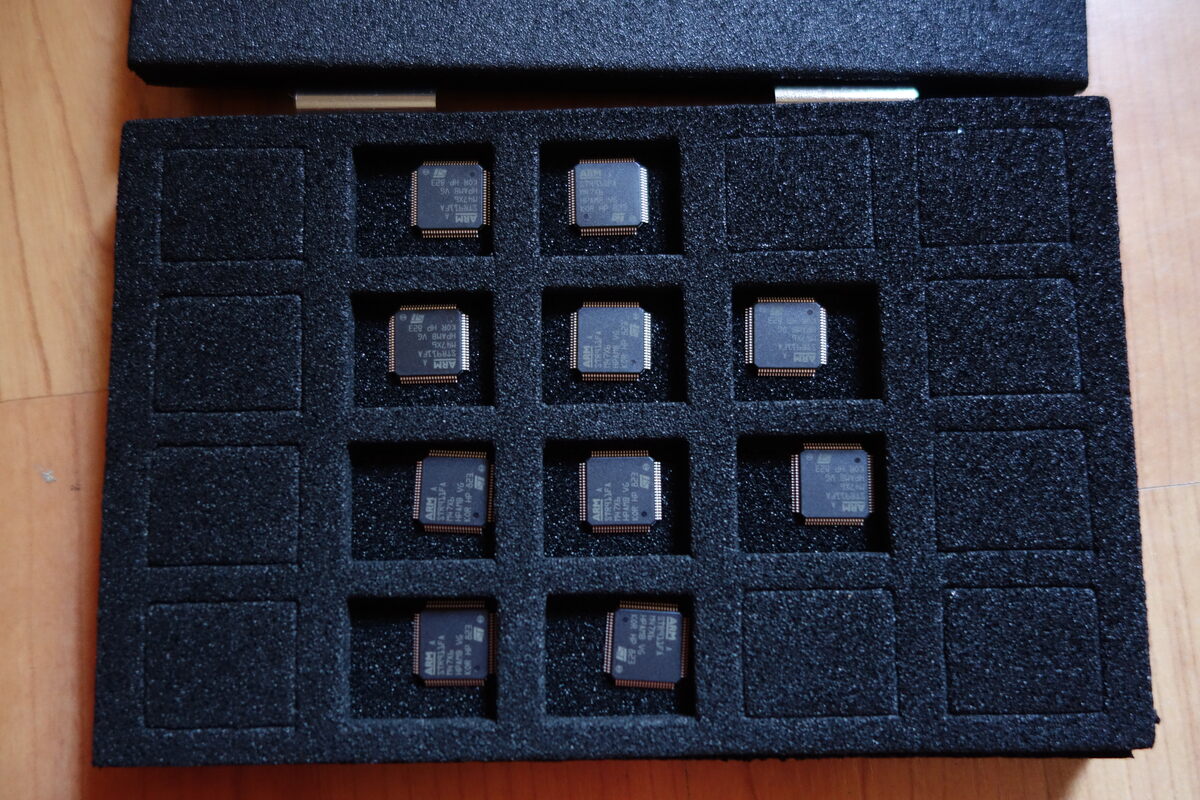

1 | *Specifications STR911FAM47X6*
|
2 | ==============================
|
3 | Core Processor ARM9
|
4 | Core Size 32-Bit
|
5 | Speed 96MHz
|
6 | Connectivity CAN, I²C, IrDA, Microwire, SPI, SSP, UART/USART, USB
|
7 | Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
|
8 | Number Of I /o 40
|
9 | Program Memory Size 2MB (2M x 8)
|
10 | Program Memory Type FLASH
|
11 | Ram Size 96K x 8
|
12 | Voltage - Supply (vcc/vdd) 1.65 V ~ 2 V
|
13 | Data Converters A/D 8x10b
|
14 | Oscillator Type Internal
|
15 | Operating Temperature -40°C ~ 85°C
|
16 | Package / Case 80-LQFP
|
17 | Processor Series STR911x
|
18 | Core ARM966E-S
|
19 | Data Bus Width 16 bit, 32 bit
|
20 | Data Ram Size 96 KB
|
21 | Interface Type CAN, SPI, UART
|
22 | Maximum Clock Frequency 96 MHz
|
23 | Number Of Programmable I/os 40
|
24 | Number Of Timers 4
|
25 | On-chip Adc 10 bit, 8 Channel
|
26 | 32 IRQ vectors, 30 interrupt pins
|
27 | 8-channel, 10-bit A/D converter (ADC)
|
28 | 0 to 3.6 V range, 0.7 usec conversion
|
29 | 10 Communication interfaces
|
30 | 10/100 Ethernet MAC with DMA and MII
|
31 | USB Full-speed (12 Mbps) slave device
|
32 | CAN interface (2.0B Active)
|
33 | 3 16550-style UARTs with IrDA protocol
|
34 | 2 Fast I2C, 400 kHz
|
35 | 2 channels for SPI, SSI™, or MICROWIRE™
|
36 | External Memory Interface (EMI)
|
37 | 8- or 16-bit data, up to 24-bit addressing
|
38 | Static Async modes for LQFP128
|
39 | Additional burst synchronous modes for LFBGA144
|
40 | Up to 80 I/O pins (muxed with interfaces)
|
41 | 16-bit standard timers (TIM)
|
42 | 4 timers each with 2 input capture, 2 output compare, PWM and pulse count modes
|
43 | 3-Phase induction motor controller (IMC)
|
44 | JTAG interface with boundary scan
|
