STM32F303K8 USART1

Gast #4665517
Hallo,

ich möchte bei meinem STM32 USART1 verwenden. Vorerst ohne DMA und nur
Tx. Ich habe ein Beispiel für USART2 gefunden und angepasst ->
funktioniert soweit. Richtiges Zeichen kommt am Computer an.
Jetzt das ganze für USART1 angepasst -> funktioniert nicht.
Es kommt nichts am Computer an.

Ausgewertet wird das ganze von Serial -> USB Adapter und Putty.

Code USART2
1
void RCC_Enable(void){
2
    /* Enable GPIO clock */
3
    RCC_AHBPeriphClockCmd(RCC_AHBPeriph_GPIOA, ENABLE);
4
    /* Enable USART clock */
5
    RCC_APB1PeriphClockCmd(RCC_APB1Periph_USART2, ENABLE);
6
    /* Enable DMA2 clock -------------------------------------------------------*/
7
    RCC_AHBPeriphClockCmd(RCC_AHBPeriph_DMA1, ENABLE);
8
}
9

10
void init_all(void) {
11
    /*===================================================*/
12
    RCC_Enable();
13

14
    GPIO_PinAFConfig(GPIOA, GPIO_PinSource2, GPIO_AF_7);
15
    GPIO_PinAFConfig(GPIOA, GPIO_PinSource3, GPIO_AF_7);
16

17
    /* Configure USART Tx as alternate function push-pull */
18
    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2| GPIO_Pin_3;
19
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;
20
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
21
    GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;
22
    GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL;
23
    GPIO_Init(GPIOA, &GPIO_InitStructure);
24

25
    USART2_Config();
26
}
27

28
void USART2_Config(void){
29
    USART_Initialisation.USART_BaudRate = 9600;
30
    USART_Initialisation.USART_WordLength = USART_WordLength_8b;
31
    USART_Initialisation.USART_StopBits = USART_StopBits_1;
32
    USART_Initialisation.USART_Parity = USART_Parity_No;
33
    USART_Initialisation.USART_HardwareFlowControl = USART_HardwareFlowControl_None;
34
    USART_Initialisation.USART_Mode = USART_Mode_Rx | USART_Mode_Tx;
35
    /* USART configuration */
36
    USART_Init(USART2, &USART_Initialisation);
37
    /* Enable USART */
38
    USART_Cmd(USART2, ENABLE);
39
}

Code USART1
1
void RCC_Enable(void){
2
    /* Enable GPIO clock */
3
    RCC_AHBPeriphClockCmd(RCC_AHBPeriph_GPIOB, ENABLE);
4
    /* Enable USART clock */
5
    RCC_APB2PeriphClockCmd(RCC_APB2Periph_USART1, ENABLE);
6
    /* Enable DMA2 clock -------------------------------------------------------*/
7
    RCC_AHBPeriphClockCmd(RCC_AHBPeriph_DMA1, ENABLE);
8
}
9

10
void init_all(void) {
11
    /*===================================================*/
12
    RCC_Enable();
13

14
    GPIO_PinAFConfig(GPIOB, GPIO_PinSource6, GPIO_AF_7);
15
    GPIO_PinAFConfig(GPIOB, GPIO_PinSource7, GPIO_AF_7);
16

17
    /* Configure USART Tx as alternate function push-pull */
18
    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6| GPIO_Pin_7;
19
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;
20
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
21
    GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;
22
    GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL;
23
    GPIO_Init(GPIOB, &GPIO_InitStructure);
24

25
    USART1_Config();
26
}
27

28
void USART1_Config(void){
29
    USART_Initialisation.USART_BaudRate = 9600;
30
    USART_Initialisation.USART_WordLength = USART_WordLength_8b;
31
    USART_Initialisation.USART_StopBits = USART_StopBits_1;
32
    USART_Initialisation.USART_Parity = USART_Parity_No;
33
    USART_Initialisation.USART_HardwareFlowControl = USART_HardwareFlowControl_None;
34
    USART_Initialisation.USART_Mode = USART_Mode_Rx | USART_Mode_Tx;
35
    /* USART configuration */
36
    USART_Init(USART1, &USART_Initialisation);
37
    /* Enable USART */
38
    USART_Cmd(USART1, ENABLE);
39
}

Zeichen wird so gesendet
1
USART_SendData(USART2, tx_var);
bzw.
1
USART_SendData(USART1, tx_var);

Habt ihr eine Idee warum USART1 nicht funktioniert?
Gast #4666197
Nachdem ich USART1 und USART2 mit dem Scope vergliechen habe, ist mir
aufgefallen, dass USART1 nur halb so schnell ist.
Habe nun im uC Programm die Baudrate auf 19200 gestellt und in Putty auf
9600
-> jetzt werden richtige Zeichen erkannt.

Ich verwende das Nucleo STM32 Board mit dem STM32F303 drauf. Für
CoreClock usw. habe ich den Generator von ST verwendet:
STM32F30x_Clock_Configuration_V1.0.0.xls
SystemCoreClock habe ich auf 64MHz eingestellt, über HSI und PLL
generiert.
Könnte es sein, dass von dem Generator falscher Code generiert wird?

Gruß
Andreas
Gast #4666239

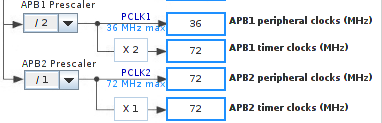

APB1 und APB2 werden unterschiedlich konfiguriert.
Ich habe das CubeMX für mich machen lassen:
1
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
2
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
3
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

So etwas in der Art müsste bei dir auch zu finden sein.
