Forum: HF, Funk und Felder AdalmPluto SDR tx rtl sdr rx


von Harry (Gast)


Angehängte Dateien:

Lesenswert?

Hallo,
ich versuche schon die ganzen Tage vergeblich QPSK Signale mit dem Adalm
Pluto an den RTL SDR USB Stick zu senden. Ich benutze die Sinc Funktion
als TransmitFilter und bekomme auf der RTL-SDR Receive Seite nur
Rauschen.

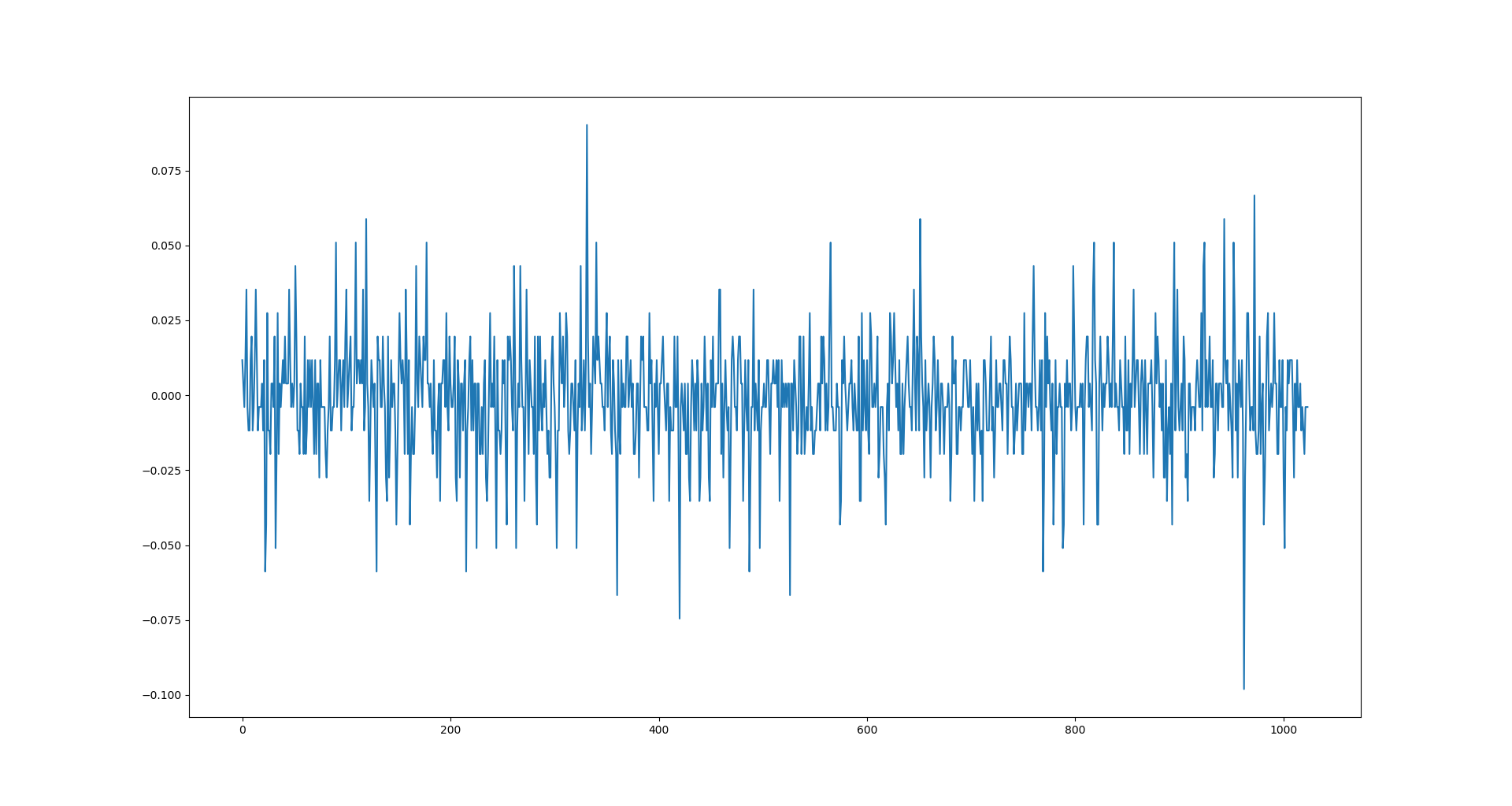

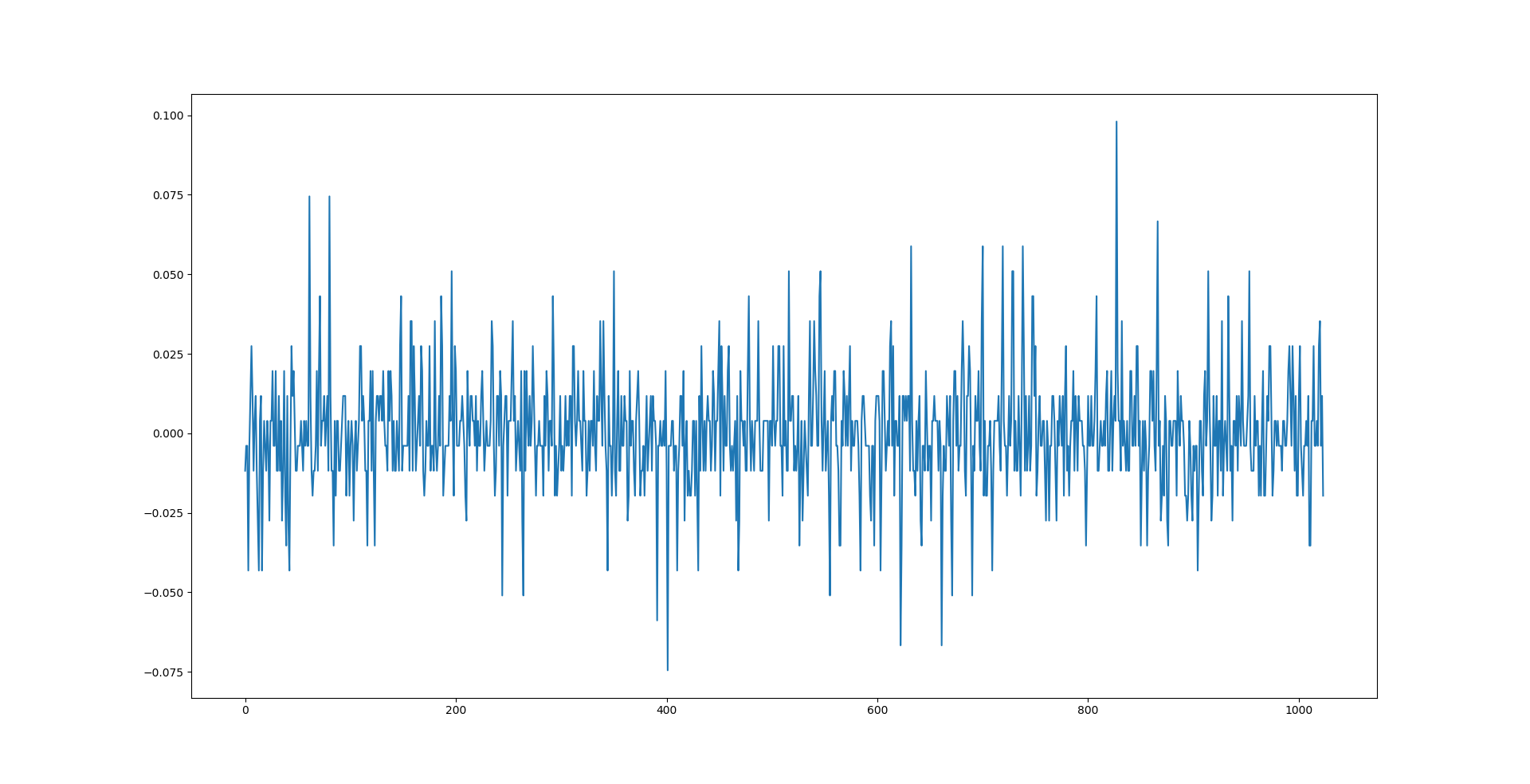

Im Anhang habe ich mal die Plots für den RealTeil des Signals und den
Imaginärteil hinterlassen.



Das hier ist der Code dazu:

1
from commpy import modulation, filters
2
from scipy import signal
3
import numpy as np
4
import matplotlib.pyplot as plt
5
from pylab import *
6
from bindings.python import iio
7
from rtlsdr import RtlSdr
8
9
sdr = RtlSdr()
10
11
sdr.sample_rate = 3.0e6
12
sdr.center_freq = 1.2e9
13
sdr.gain = 4
14
15
16
17
18
19
20
# User configurable
21
TXLO = 1200000000
22
TXBW = 5000000
23
TXFS = 3000000
24
RXLO = TXLO
25
RXBW = TXBW
26
RXFS = TXFS
27
28
ctx = iio.scan_contexts();
29
print(ctx)
30
31
list = []
32
33
for i,j in ctx.items():
34
    list.append(i)
35
36
ctx = iio.Context(_context=list[0])
37
38
39
ctrl = ctx.find_device("ad9361-phy")
40
txdac = ctx.find_device("cf-ad9361-dds-core-lpc")
41
rxadc = ctx.find_device("cf-ad9361-lpc")
42
43
# Configure transceiver settings
44
ctrl.channels[0].attrs["frequency"].value = str(int(RXLO))
45
ctrl.channels[1].attrs["frequency"].value = str(int(TXLO))
46
ctrl.channels[4].attrs["rf_bandwidth"].value = str(int(RXBW))
47
ctrl.channels[5].attrs["rf_bandwidth"].value = str(int(TXBW))
48
ctrl.channels[4].attrs["sampling_frequency"].value = str(int(RXFS))
49
ctrl.channels[5].attrs["sampling_frequency"].value = str(int(TXFS))
50
ctrl.channels[5].attrs['gain_control_mode'].value = 'slow_attack'
51
#ctrl.channels[5].attrs['hardwaregain'].value = '20'
52
53
# Enable all IQ channels
54
rxadc.channels[0].enabled = True
55
rxadc.channels[1].enabled = True
56
txdac.channels[4].enabled = True
57
txdac.channels[5].enabled = True
58
59
60
# Force DAC to use DMA not DDSs
61
txdac.channels[0].attrs['raw'].value = str(0)
62
txdac.channels[1].attrs['raw'].value = str(0)
63
txdac.channels[2].attrs['raw'].value = str(0)
64
txdac.channels[3].attrs['raw'].value = str(0)
65
66
67
# Create cyclic buffer for TX data
68
N = 2**15
69
txbuf = iio.Buffer(txdac, N, False)
70
71
72
73
74
75
# QPSK Modulation
76
77
psk = modulation.PSKModem(4)
78
79
input_bits = [1, 1, 0, 0, 1, 0, 0, 1, 1, 1,]
80
81
psk_val = psk.modulate(input_bits=input_bits)
82
83
84
x = np.linspace(-4,4,2000)
85
86
#Filtering the modulated input bits with the sinc function
87
88
conv_re = []
89
conv_im = []
90
for sym in psk_val:
91
92
    conv_re.append(np.convolve(np.sinc(x),real(sym)))
93
    conv_im.append(np.convolve(np.sinc(x),imag(sym)))
94
95
conv_re = 1000000*np.reshape(conv_re,(1,size(conv_re)))
96
conv_im = 1000000*np.reshape(conv_im,(1,size(conv_im)))
97
print(psk_val)
98
99
100
101
"""plt.figure(5)
102
plt.plot(conv_im[0])
103
plt.figure(6)
104
plt.plot(conv_re[0])"""
105
106
107
iq = np.empty((conv_re.size + conv_im.size,), dtype=conv_im.dtype)
108
iq[0::2] = conv_re
109
iq[1::2] = conv_im
110
111
iq = np.int16(iq)
112
113
# Send data to buffer
114
txbuf.write(iq)
115
txbuf.push()
116
117
samples = sdr.read_samples()
118
119
120
plt.figure(13)
121
plt.plot(real(samples))
122
123
plt.figure(19)
124
plt.plot(imag(samples))
125
126
plt.show()

von Harry (Gast)


Angehängte Dateien:

Lesenswert?

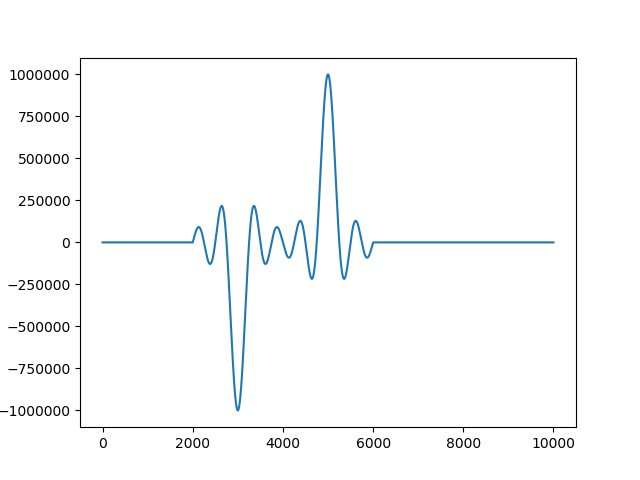

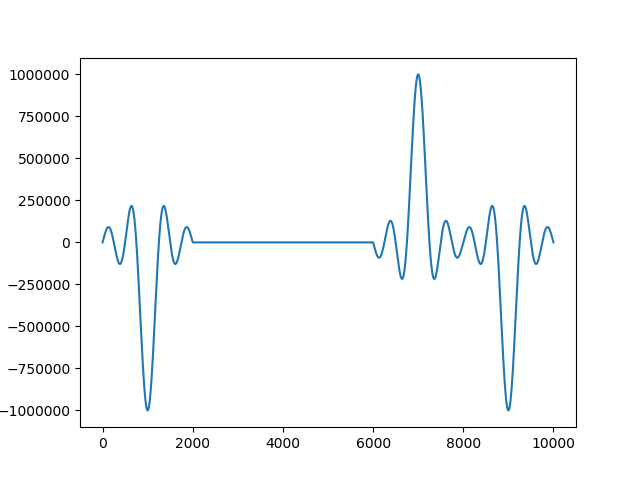

hier noch jeweils Realteil und Imaginärteil des Signals bevor es
übertragen wird.
