Controllerless LCD

[RES (Gast)]

Hallo

Anyone who has experience with controllerless LCD displays?
I have an Optrex 320x240 DMF50081 LCD, I cannot get it operating
(half)
I do not understand the M line, does anyone know what must happen with
the M line.

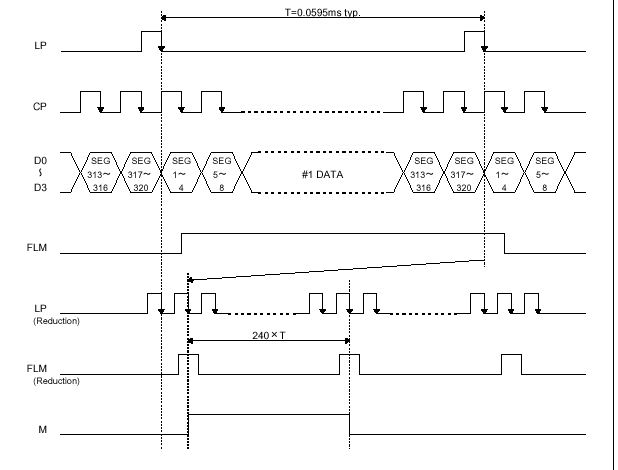

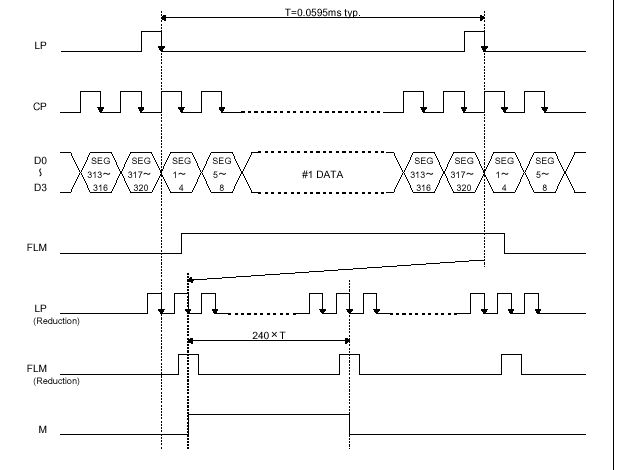

Here is the timing diagram.

Thanks.

[Sebastian Heyn (Gast)]

do you have a full data sheet?

[RES (Gast)]

Yes. Here it is.

[Christoph Kessler (db1uq) (Gast)]

M is half of frame frequency, often produced on-board with one half of
74xx74 just a frequency divider for the frame pulse

[Christoph Kessler (db1uq) (Gast)]

http://www.mikrocontroller.net/forum/read-4-160854.html#new

[RES (Gast)]

Frame frequency is 70Hz, so M must be 35Hz.
Ok, I will try this.

Thanks.
